DESIGNED AND BUILT SPECIFICALLY FOR MOTORCYCLES

SPECS:

4 CHANNEL POWER AMPLIFIER

4 X 70 WRMS into 4 ohms @ 12.5 Vdc
4 X 92 WRMS into 4 ohms @ 14.4 Vdc
4 X 115 WRMS into 2 ohms @ 12.5 Vdc
4 X 152 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

2 X 218 WRMS into 4 ohms @ 12.5 Vdc
2 X 302 WRMS into 4 ohms @ 14.4 Vdc
Frequency response – 20-20,000 +/- 3dB THD < 0.5%
Operating Voltage: 8V – 16V
Current Draw (Music): 40 A
Current Draw (Max): 80 A
Recommended Fuse (Music): 40 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91dB
Crossover LPF/FULL/HPF : 40 TO 400Hz
Slope:12dB per octave
Gain : 0.2V – 12 Vac
Turn-On Configuration: REM/VOX/DC
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 7.0 x 4.0 x 1.375 in / 177.8 x 101.6 x 34.9 mm

CICADA AUDIO – THE ”NEW KIDS” ON THE BLOCK

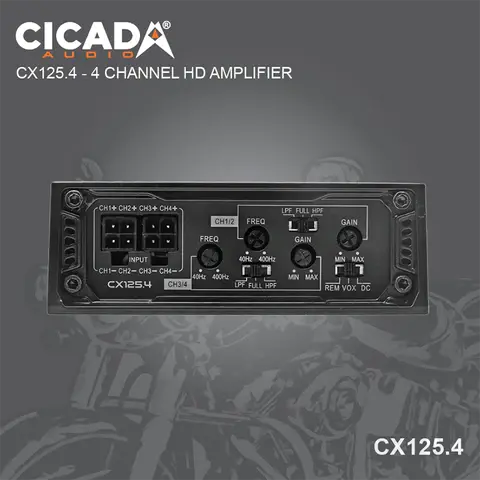

It’s fitting that the SECOND amplifier we deliver will be an ultra-compact aluminum chassis, the CX125.4 amplifier is element-ready, being the ideal choice for Motorcycle installations. It features an incredible power/size ratio and an easy setup. HighPass and LowPass Crossover slopes are 12dB per octave and adjustable from 40-400Hz. Input sensitivity is adjustable from 0.2Vac – 12Vac.

Fitment notes: This amplifier is a great “form factor” as it can sit on top of the radio or under the left/right bike fairing substructure. Easily fits into the fairing of any Harley Bagger 1998 – 2019.
